Technical Drawings and CAD

Aircraft Dimensions

​
​
​
​
​
​
​
​
​
Dimension
Length [mm]
Unfolded Diameter (not including props)
1415
Unfolded Diameter (Including Props)
2273
Folded Diameter
877
Height
387
Height (Skyview)
434

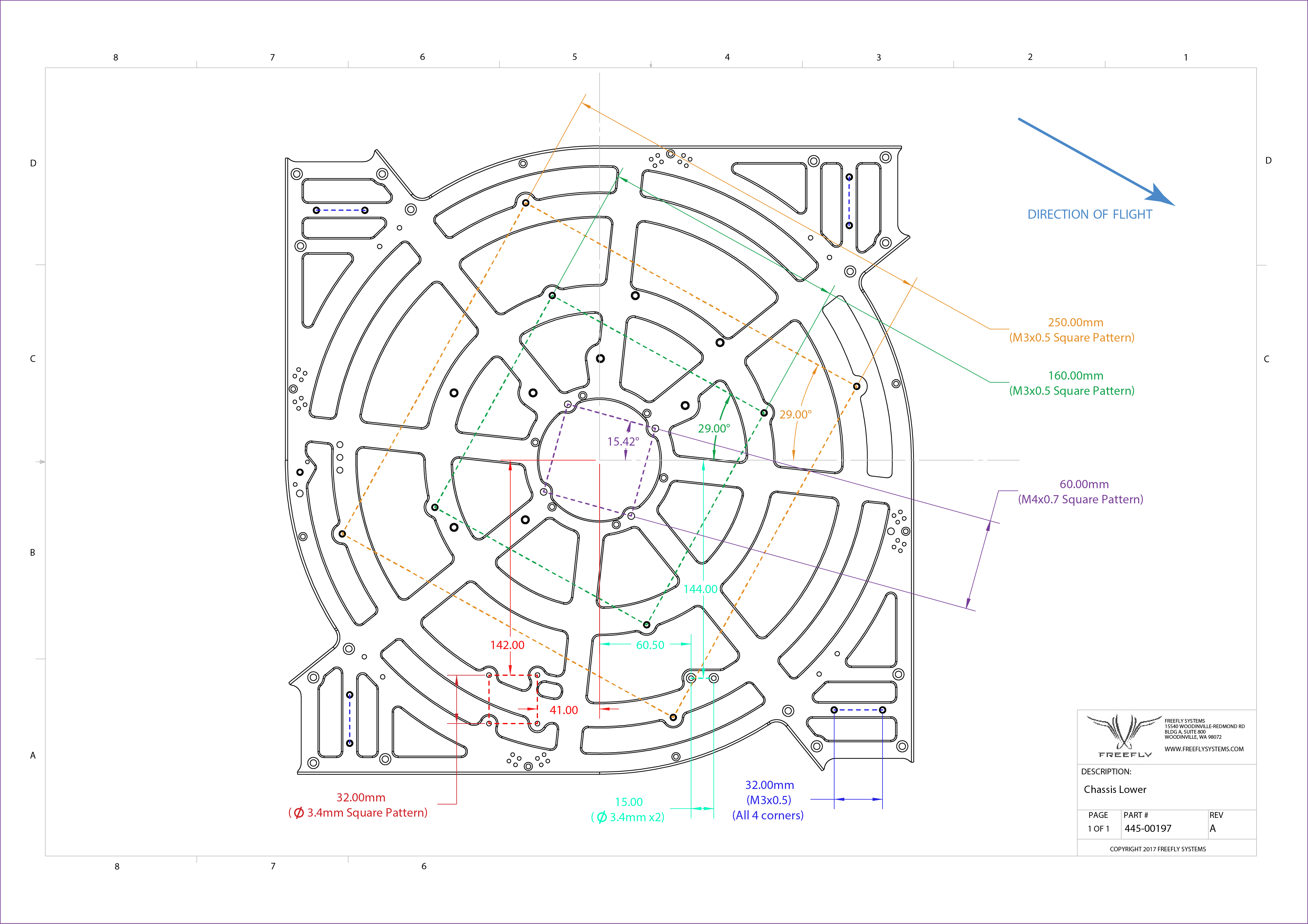

Mounting Interfaces - Chassis Underside

Mounting patterns on the underside of the chassis
445-00197 Chassis Lower - REV F.PDF
203KB
PDF
Complete drawing for Chassis Lower
Alta X Lower Chassis Hole Pattern Guide.pdf
529KB
PDF
Chassis Lower Mounting Patterns
​Shrinkwrap Model Link - Fusion 360 Web Viewer. (Downloadable STEP file available here)
​Landing Gear CAD shrinkwrap (Downloadable STEP available here)
CAD files for Movi Pro can be found in this section​
